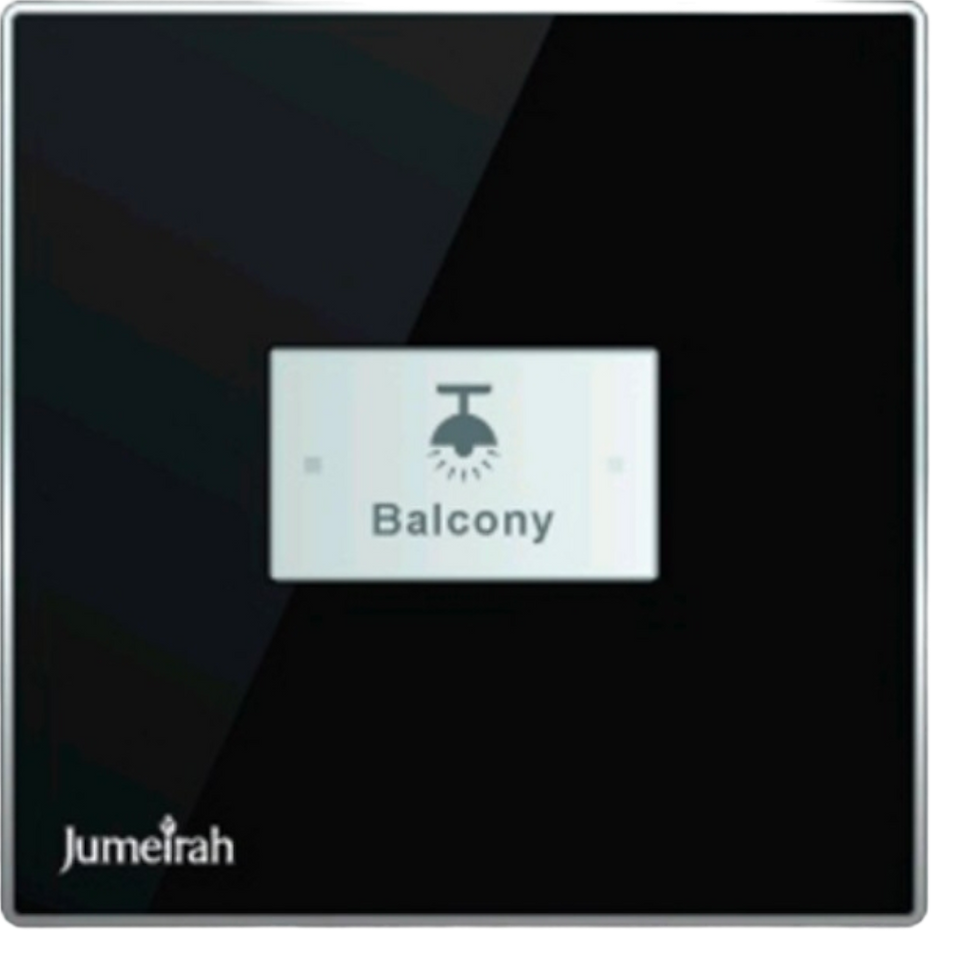

Simple Elegant Momentary Switch 3x3 fits EU and British back Boxes. Passive, Simple Momentary Elegant Switch; Easy NO/NC Connection to any Dry Contact for Simple Trigger Momentary Function Compatible to be used with any Universal Dry Input System Standard

Added features
Lockable keys/ button
Screw less mounting
Easy NO/NC connection to any
Dry Contact.
Control Applications
lighting, security arming, motorized
shades, moods and
scenes, on/off music, fountains,
irrigation, gates, LED color,
service request, panic, lifts,
fountains, gates..etc.
User Controls
• user control button
Button behavior
Single click (on/Off toggle)
Compliance
CE Mark EMC
ROHs, CPT
Total Gang
1 gang
Installation
• wall Mount metal frame twist
• Magnetic screw less mounting
• Advanced security locking
• Easy ON/NC connection.
Operating Environment
0º to 45ºC ambient temperature
20% to 93% RH
Enclosure material
Plastic, Glass, and poly
Dimensions & Weight
W85mm x L85mm x H12mm x
D8mm. Backed weight 0.2 kg
