Description

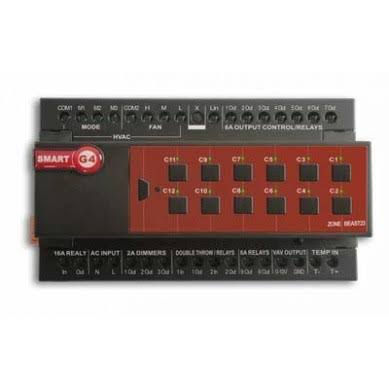

DIN-Rail Mount: 5Isolated Areas Mix Controller. This Mix Control module is designed to Handle almost all needs of any Luxury Zone Like Master Suite, Hotel Room or 1-2 bedroom apartment. A Single Module contains 3Ch Dimmers X each is 1A, and 9ch Relays X each is 6A /per ch. with scene controller. 4RelaysX6A With Double Throw for Motorized curtains and Drapes. 1Relay X 16A for Boiler and Floor Heating. HVAC module for FCU/AHU to Handle Multi stage Cooling, heating, and 3 fan Speed (L M H). Built in 1 Port for 0-10V VAV and Ballast Control. Added Port for T1 Temperature Sensor for Duct Temperature. Work 220/110 VAC, 50-60Hz (Green operated) Compact
TECHNICAL DATA:
Supply
80-230VAC, 50/60Hz 3-Lines
power consumption: 20-30mA
Outputs
Max Load per Relay Ch 3A
Max Load for Dimmer Ch 2A
Total 5A
Maximum Total Load
Total load must never exceed 30A
Control IO
3 x Advanced RS485 S-BUS
serial port links (both train &
screw link types)
Upgrade IO
1 x mini USB port (to connect to
special programming board)
User Controls
• front panel override switches,
Includes ON/OFF/AUTO override
switch for each channel
• LED status indicator/channel
• Diagnostic LED+ BROADCAST
Programming
• Manual Ch. Pairing Prog.
• Advanced Software Configuration
& Programming
Compliance
CE Mark Low Voltage
CE Mark EMC
ROHs, | Internal Protection
• Over Load Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection
Preset and Scenes
16X12 Built in Scenes, & 16X2
Sequence Modes & Logics.
Installation
• 35mm DIN-Rail Mount Ready
• Wall Mount Ready (8P)
SBUS DC Supply
24VDC with flexible tolerance
between 12-36VDC. Flexible
ability to add power supply as
to be needed anywhere
Supply Terminals
3 each is good for 2 x 2.5mm2 or
1 x 4mm2 max conductor size
Output Terminals
24 each is good for 2 x 2.5mm2
or 1 x 4mm2 max conductor size
Operating Environment
0º to 45ºC ambient temperature
10% to 93% RH
Enclosure & Size
Polycarbonate, DIN-rail (8 Unit)
Dimensions & Weight
W 91mm x L 145mm x H 75mm
Packed weight 0.9kg |
Q & A
Q: How many Zone Beast Mix 23 can load?
A: Zone Beast Mix 23 is Designed for Single Zone/Room Use with Optimal Loads. The Max Load Per Line should not Exceed 13A Total regardless.
